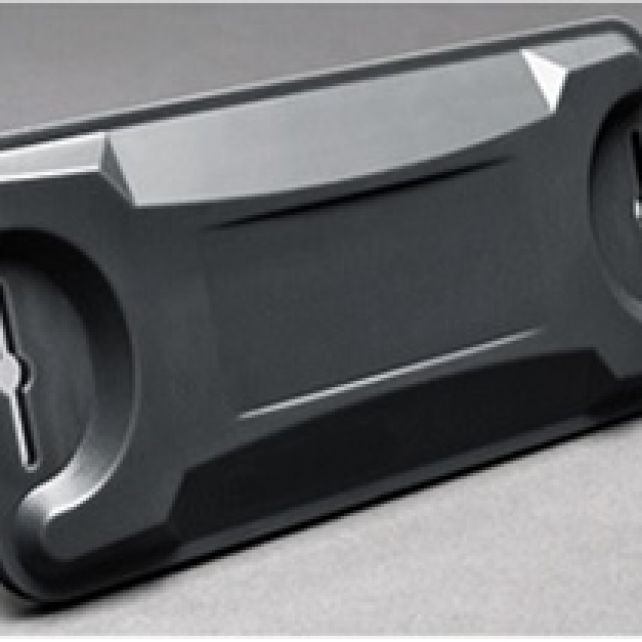

ATEX Max HD Tag
These tags are best suited for harsh environment and ATEX zone 1 and 2.
Zone 1, 2
| Product Description | ATEX MAX HD Tag |
||||||||
| Physical Specifications | |||||||||
| Encasement | ABS or Polycarbonate | ||||||||
| Size (mm) (tolerance) | 140 x 66 x 14.0 ( +/–1.0 ) / 5.51 x 2.6 x 0.55 ( +/–0.04 ) | ||||||||
| Weight | 79gr (ABS) 82gr (PC) | ||||||||
| RF Specifications | |||||||||
| Protocol | EPC Class 1 Gen2 | ||||||||
| Frequency Range (MHz) | 860–960 (global) | ||||||||
| Read Range (Fixed reader)1 | Up to 15.0 (global) | ||||||||
| Read Range (Handheld reader)1 | Up to 7.5 (global) | ||||||||
| Material Compatibility | Optimized for metal | ||||||||
| IC Type (chip) | Alien H3 | ||||||||
| Memory 2 | EPC - 96bits, User - 512bits, TID - 64bits | ||||||||
| Environmental Specification | |||||||||
| Operating Temperature | –40 to +85 °C | ||||||||
| Long term Max Temperature 1 exposure - (days,weeks,years) |
+85 °C | ||||||||
| Short term Max Temperature 1 exposure - (minutes,hours) |
+105 °C | ||||||||
| IP Rating | IP68 Submersion proof to 3000m depth | ||||||||
| Shock and Vibration | MIL STD 810-F | ||||||||
| Impact | >25kg from 1m | ||||||||
| Attachment | Manual (standard) | ||||||||
| Certifications | RoHS approved CE approved ATEX/IECEx certified (option) US&Canada (C1D1/D2) certified (option) |
||||||||
|
II 2G Ex ia IIB Ga I M1 Ex ia Ma Class I, Div 1 Groups C, D Can also be used in ATEX/IECEx (NOT FM!) Zone 0 IIC provided it is used in a fixed installation only. To be used for FIXED INSTALLATION ONLY! |
||||||||
Frequencies
- UHF (865 - 915 MHz)
Application Areas
- ATEX-Zone 2 und 22
- ATEX Zone 1
