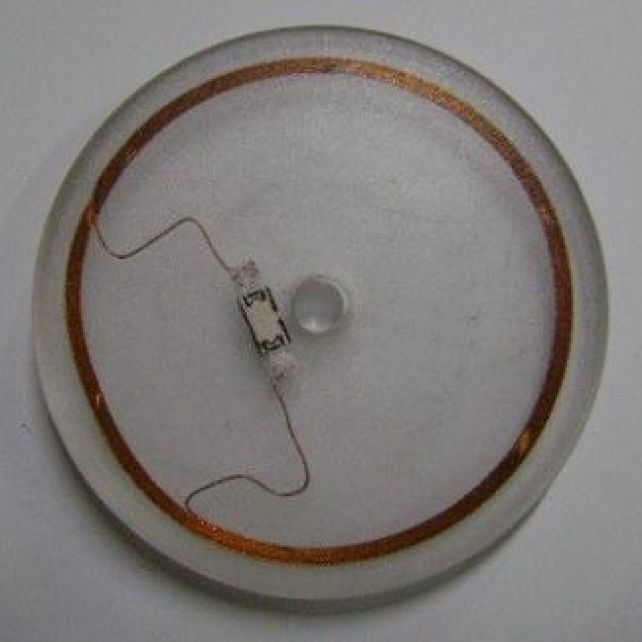

LX Disc Tag

Specially tag for use in production with galvanic / electroplating processes (acid resistant).
Electrical Characteristics
Operating Frequency 13,56MHz
IC Technologies SRF55V10P
Memory Size 10 K bit EEPROM
RF-Interface ISO 15693
Write Endurance 100.000 cycles
Data Retention 10 years
Thermal & Environmental Characteristics
Storage Temperature -40ºC up to +100ºC
Operating Temperature -20ºC up to +85ºC
Packaging Protection Class IP 68
Shock & Vibration IEC 68-2-6 / 29
RoHs Compliance YES
Physical Characteristics
Length 50,0 mm
Width 5,0 mm
Thickness 3,0 mm
Weight 7,5 gr
Material PolyCarbonate
Special Designed for applications in galvanic processes

Request an offer by email

Frequencies

  • HF (13.56 MHz)

Application Areas

  • Asset Management
  • General Warehouse
  • Maintenance and Service
  • Industry and Automotive

LX Disc Tag
