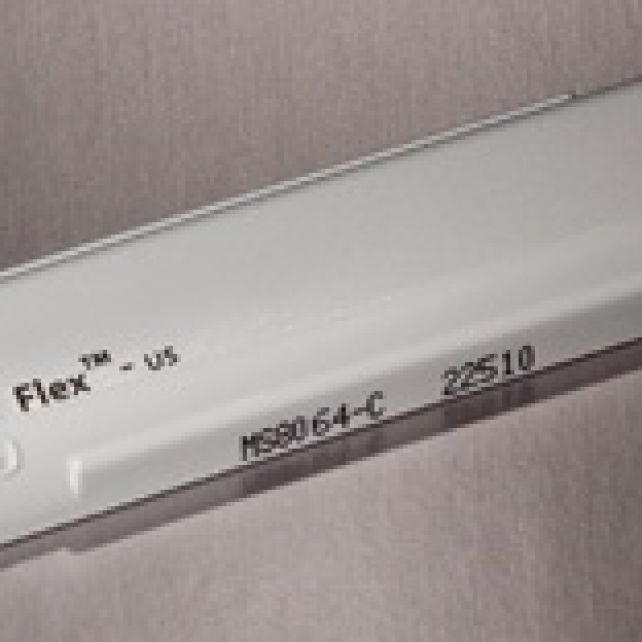

ATEX Flex R Tag

These tags are best suited for harsh environment and ATEX zone 1 and 2.

Zone 0, 1, 2

Product Description ATEX
Flex R Tag
Physical Specifications
Encasement ABS or Polycarbonate
Size (mm) (tolerance) 100 x 21 x 7.2 (+/- 1.0 mm) / 3.9 x 0.8 x 0.28 (+/- 0.04 in)
Weight 11,6gr
RF Specifications
Protocol EPC Class 1 Gen2
Frequency Range (MHz) 902–928 (US), 866–868 (EU), 952–954 (JPN)
Read Range (Fixed reader)1 Up to 5.0 (US), Up to 5.0 (EU), Up to 4.0 (JPN)
Read Range (Handheld reader)1 Up to 2.5 (US), Up to 2.5 (EU), Up to 2.0 (JPN)
Material Compatibility Any
IC Type (chip) Alien H3
Memory 2 EPC - 96bits, User - 512bits, TID - 64bits
Environmental Specification
Operating Temperature ABS: –40 to +55 °C / PC: –40 to +85 °C
Long term Max Temperature 1
exposure - (days,weeks,years)
ABS: +55 °C
PC: +85 °C
Short term Max Temperature 1
exposure - (minutes,hours)
ABS: +65 °C
PC: +95 °C
IP Rating IP68
Shock and Vibration MIL STD 810-F
Impact 10kg from 1m
Attachment Manual (standard)
Film adhesive (option)
Standard foam adhesive (option)
Premium foam adhesive (option)
Certifications RoHS approved
CE approved
ATEX/IECEx certified (option)
US&Canada (C1D1/D2) certified (option)

ATEX
II 1G Ex ia IIA Ga
I M1 Ex ia Ma
Class I, Div 1 Groups ´C, D
Can also be used in ATEX/IECEx (NOT FM!) Zone 0 IIC provided it is used in a fixed installation only.



Request an offer by email

Frequencies

  • UHF (865 - 915 MHz)

Application Areas

  • ATEX-Zone 2 und 22
  • ATEX Zone 1
