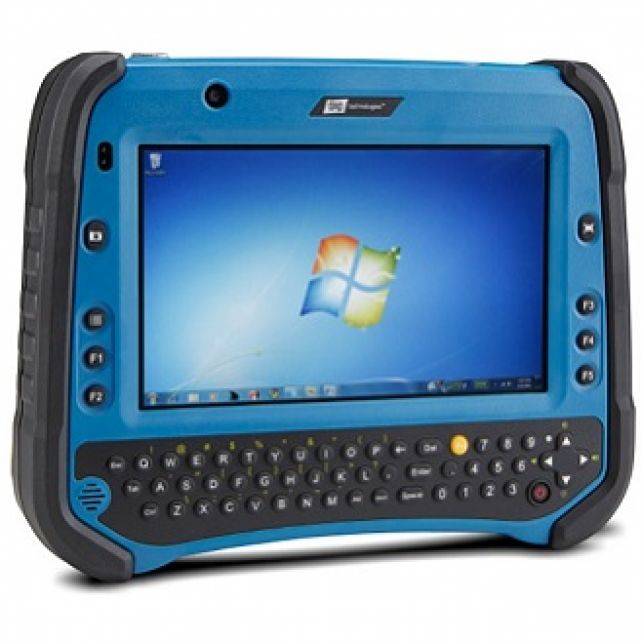

AGX DAP9020Ex

Ultra rugged tablet PC with 7" touch display, WIN 7 Pro and RFID (LF, HF, UHF)
for extreme operation (indoor/outdoor).

Performance Windows® Embedded 7 Tablet

The go-anywhere solution for companies who need reliable mobile communication throughout their supply chain and want to future-proof their technology purchase with advanced communications options, modularity and ruggedness.

Advanced wireless communications like Gobi™ 5000, WLAN 802.11 a/b/g/n and Bluetooth®— technology you can put to work right now to lower operating costs and increase effciencies. Innovative form factor: built for the way your users want to use a computer with multiple comfort grips, right or left-handed use, and operation with gloved or bare hands.

Large 7 inch sunlight viewable touchscreen:  industrial reinforced, glass on glass touchscreen automatically switches from landscape to portrait view based on how the user is holding the tablet.

Windows® 7 Professional and optional Windows® Embedded Standard 7: allows for seamless integration into most enterprise environments. Superior power management: work a continuous 8-hour shift without docking the computer.  Intel® Atom™ N2600 processor—the first processor created for the specifc needs of industrial users.

IP67 and meets MIL-STD-810G: total protection against dust and immersible in up to one meter of water.

Ultra rugged with Auto-ID in combination with RFID



The AGX DAP9020 has a large number of connectors for external devices. Technologies such as WLAN a/b/g/n, Bluetooth 4.0, Optional 3G modem, 5 / 2 Mega pixel camera, 1D/2D Scanner, GPS meet all the requirements for mobile applications. One RJ45 port (Ethernet via cradle), and 1 USB 2.0 ports allow the connection of the necessary external options such as printers, keyboards or other peripherals.




            1D Laser Scanner                                      RS232/USB 2.0


The absolute highlight is the possibility to enhence the AGX DAP9010 (Cyborg) with all common RFID technology modules (LF 125 kHz, HF 13.56 MHz or UHF 868 MHz). These can be operated in parallel with the 1D Laser Scanner and thus leaves nothing to be desired in modern tracking of goods.

LF/HF/UHF RFID reader integrated



Ergonomie

The AGX DAP9020 has a 7 inch TFT (1024x600) hardened touch screen. LED backlight and sunlight readable will allow the "clear view" day and night (anldscape or portrait orientation). With dimensions of  230 × 185 × 51 mm it is perfectly suitable for everyday use.

Request an offer by email

Frequencies

  • HF (13.56 MHz)
  • LF (125 - 134.2 kHz)
  • UHF (865 - 915 MHz)

Application Areas

  • Asset Management
  • Access Control and Security
  • Laundry
  • Pharma
  • Health Care
  • Library and Documents
  • General Warehouse
  • POS
  • Maintenance and Service
  • Ticketing
  • Onsite and Field Service
  • Transport and Delivery
  • Industry and Automotive
  • ATEX-Zone 2 und 22
