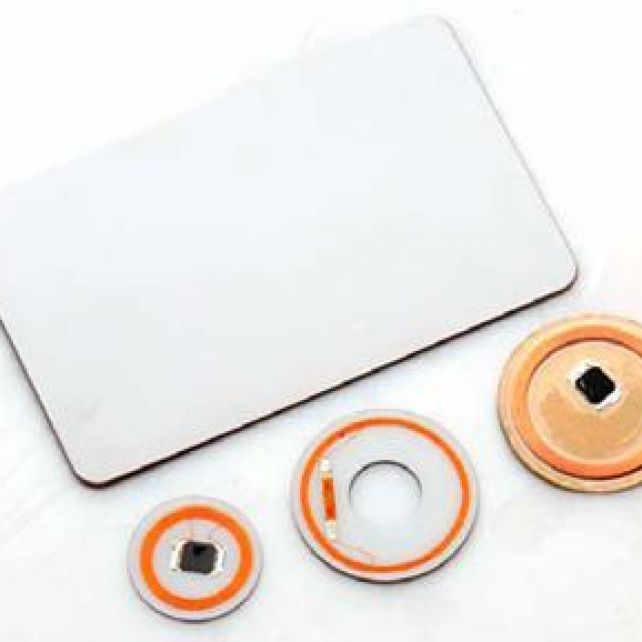

Label Tag

Verfügbar in LF, HF und UHF.
Es können auch 2 unterschiedliche Frequenzen als Multichip kombiniert werden.

Electrical Characteristics
Operating Frequency					125 KHz /13,56 MHz
IC Technologies					NXP, LEGIC, EM MARIN, ATMEL
Memory Size					Depends on IC type
Thermal and Environmental Characteristics
Storage Temperature					-20ºC up to +60ºC
Operating Temperature					-15ºC up to +55ºC
Packaging Protection Class					IP 67
RoHs Compliance					YES
Physical Characteristics
Available Size	20 mm	25 mm	27 mm	30 mm	34 mm	46 mm
Outer Diameter	20,0 mm	25,0 mm	27,0 mm	30,0 mm	34,0 mm	46,0 mm
Inner Diameter	N.A.	N.A.	N.A.	N.A.	16,0 mm	N.A.
Thickness	500µm	500µm	500µm	500µm	500µm	600µm
Weight	0,7 g	0,8 g	0,8 g	0,9 g	1,0 g	1,0 g
Material	Special Thermoplastic + Epoxy

Frequenzbereiche
